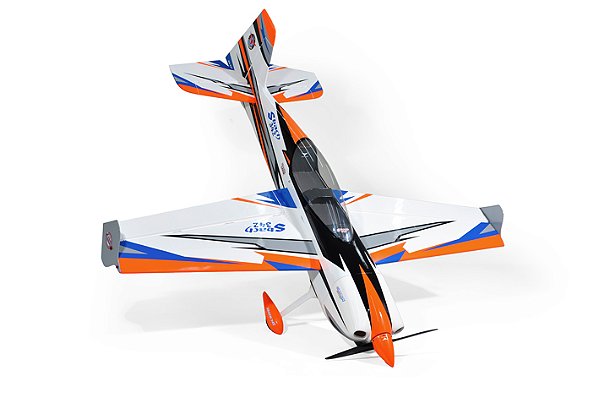

So O Kit Avião Sbach 342 74'' Size 35cc Arf V2 Ng Branco Laramja E Preto

Introducing

SBACH 342 74'' SIZE 35CC ARF V2

Technical data

- Wingspan: 1880mm (74 in)

- Length: 1850mm (73 in)

- Flying weight: 5500-5700gr

- Wing area: 66 dm2

- Gear type: Carbon fiber for main gear and tail gear (included)

- Spinner size: Carbon Spinner 86mm (included)

- Gravity CG: 135mm (5.3 in) Back from the leading edge of the wing, at the fuselage

CONTROL SETTINGS:

- Elevator:

Low Rate 8-10 deg. 10-25% expo

3D Rate 45-50 deg. 55-65% expo

- Aileron:

Low Rate 15-20 deg. 40-45% expo

High Rate 38-40 deg. 60-75% expo

- Rudder:

Low Rate 20 deg 40-50% expo

High Rate 45-50 deg. 60-80% expo

POWER SYSTEM:

Gas

- Engine 35cc Propeller: Carbon gas 20 x 8

- Engine 38cc Propeller: Carbon gas 20 x 9

- Fuel tank: 360ml

Electric

- Motor: GA3500R DUALSKY

- ESC: 120HV

- Battery: Two 6S 3300-3700 mAh

- Prop: 19x10, 20x8 wood or carbon electric

SERVO: Metal gear hi-torque servos

- 2 Aileron: hi-torque 30-40 kg ( Standard size: 20x40mm )

- 2 Elevator: hi-torque 16-22 kg ( Medium size: 18x36mm )

- 1 Rudder: hi-torque 16-22 kg ( Medium size: 18x36mm )

- 1 Throttle: hi-torque 12 kg ( Medium size: 18x36mm ) (Gas Power)

BOX DIMENSION

   - 1,459mm X 565mm X 288mm (L x W x H)
